• Air conditioning, single-zone manual (Not available with (R6G) air conditioning delete.)
• Assist handles, driver and right-front passenger
• Cargo tie-downs 6 D-ring attachments on cargo area floor (Not available with (Y3H) Paratransit Package, (5BV) Upfitter electrical provisions or (ZP6) 5-passenger Express Crew Van.)
• Chevrolet 4G LTE and available built-in Wi-Fi hotspot offers a fast and reliable Internet connection for up to 7 devices; includes data trial for 1 month or 3GB (whichever comes first); EFFECTIVE WITH RETAIL SALES STARTING 5/1/2018. (Included and only available with (UE1) OnStar. Available Wi-Fi requires compatible mobile device, active OnStar service and data plan. Data plans provided by AT&T. Visit onstar.com for details and system limitations.)
• Defogger, side windows
• Door locks, power with lock-out protection (Included with (ZQ2) Power Convenience Package. NOTE: Does not include (ATG) Remote Keyless Entry. (ATG) Remote Keyless Entry must be ordered separately.)
• Floor covering, full-length Black rubberized-vinyl (Not available with (RFM) rear floor covering delete, (5BV) Upfitter electrical or (PCH) Hotel Shuttle Package.)
• Headliner, cloth, over driver and passenger
• Lighting, interior with 4 dome lights 1 overhead and 3 LED's on cross members in cargo area, includes defeat switch and door handle-activated switches
• Mirror, inside rearview includes Rear Vision Camera display
• Oil life monitor
• Power outlet, 120-volt
• Seating arrangement, driver and front passenger high-back buckets with head restraints and vinyl or cloth trim (Not available with (AJ3) driver-side only frontal air bag.)
• Seats, front bucket with vinyl trim and outboard head restraints, includes inboard armrests. (Requires (**W) interior trim. Includes (DAA) driver and front passenger vinyl visors.)
• Steering wheel, steel sleeve column with theft-deterrent locking feature, Black
• Theft-deterrent system, vehicle, PASS-Key III
• Tow/haul mode selector, instrument panel-mounted
• Trim panels, hinged rear side doors and hinged rear doors (Not available with (Y3H) Paratransit Package or (5BV) Upfitter electrical provisions.)
• Visors, driver and front passenger, cloth, padded
• Warning tones, headlamp on and key-in-ignition
• Windows, power (Included with (ZQ2) Power Convenience Package.)

• Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Body, standard
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, full-length box ladder-type
• Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
• Rear wheel drive
• Steering, power
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs

• Air bags, driver and right-front passenger, seat-mounted side-impact and head curtain side-impact (Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, frontal, driver and right-front passenger (Includes passenger-side air bag deactivation switch. Included with (ZX2) driver and front passenger high-back bucket seats or (ZP6) 5-passenger Express Crew Van Package. Not available with (ZX1) driver only high-back bucket seat or (AJ3) driver-side only frontal air bag. Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Chevrolet Connected Access with such as, Vehicle Diagnostics, Dealer Maintenance Notification, Chevrolet Smart Driver, Marketplace and more; EFFECTIVE WITH SALES STARTING 5/1/2018. (Included and only available with (UE1) OnStar (subscription required). Limitations apply. Not transferable. Standard connectivity available to original purchaser for ten years from the date of initial vehicle purchase for model year 2018 or newer Chevrolet vehicles. See onstar (subscription required).com for details and further plan limitations. Connected Access does not include emergency or security services. Availability and additional services enabled by Connected Access are subject to change.)
• Daytime Running Lamps
• Door beams, steel-side
• Hill Start Assist
• Rear Vision Camera display integrated into rearview mirror (Display included with (DRJ) inside rearview mirror.)
• StabiliTrak, traction assistance and vehicle stability enhancement system
• Tire Pressure Monitoring System (does not apply to spare tire)

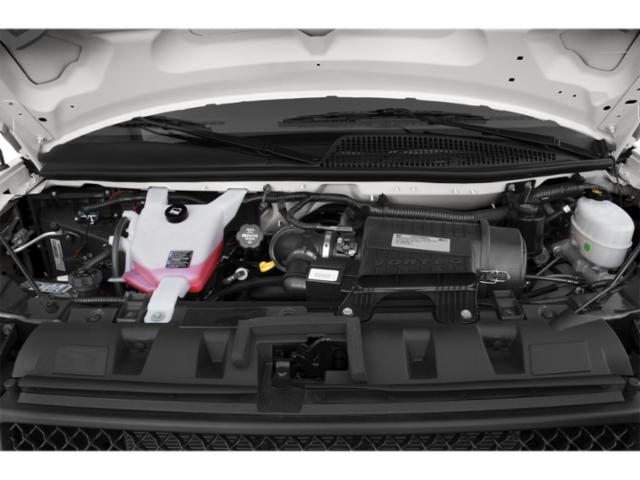

ENGINE, 4.3L V6

• with Direct Injection and Variable Valve Timing
• includes aluminum block construction (276 hp [206 kW] @ 5200 rpm
• 298 lb-ft of torque [404 Nm] @ 3900 rpm) (STD)

• Driver Convenience Package: Tilt-Wheel; Cruise Control
• Preferred Equipment Group 1WT: 16" X 6.5" Steel Wheels; 4.3L V6 DI VVT Engine; Front Reclining High-Back Bucket Seats; Vinyl Seat Trim; 3.42 Rear Axle Ratio; AM/FM Stereo with MP3 Player; Electronic 8-Speed Automatic Transmission with Overdrive; 8
• 600 lbs (3
• 901 Kg) GVWR; Rear LT245/75R16E AS BW Tires; Front LT245/75R16E AS BW Tires
• Heavy-Duty Trailering Equipment
• Cruise Control
• Rear and Side Cargo Door Glass
• Trailer Wiring Provisions
• SEO: 2 Additional Keys For Single Key System
• Driver and Front Passenger Vinyl Visors
• Chevrolet 4G LTE mobile hotspot internet access
• Rear mounted camera
• Cruise control with steering wheel mounted controls
• 4.3L V-6 gasoline direct injection
• variable valve control
• regular unleaded
• engine with 276HP
• 4.3L V-6
• Mechanical
• OnStar Guidance vehicle tracker with vehicle slowdown
• Immobilizer
• OnStar Guidance vehicle integrated emergency SOS system
• OnStar Basic w/RemoteLink smart device app link
• Trailer Sway Control (TSC) trailer sway control
• StabiliTrak electronic stability control system
• Hill start assist
• Manual rear child safety door locks
• Manual tilting steering wheel
• Argent hub wheel covers
• 16 x 6.5-inch front and rear gray steel wheels
• LT245/75SR16 AS BSW front and rear tires
• Vinyl front seat upholstery
• 6 airbags
• Driver front impact airbag
• Seat mounted side impact driver airbag
• Curtain first-row overhead airbags
• Cancellable front passenger air bag
• Seat mounted side impact front passenger airbag
• Airbag occupancy sensor
• 8-speed automatic
• Tow/Haul Mode selectable mode transmission
• Manual climate control
• Transmission electronic control
• Sequential shift control
• Automatic
• Reflector headlights
• Halogen headlights
• Auto on/off headlight control
• Daytime running lights
• Delay-off headlights
• Bucket front seats
• Driver seat with 4-way directional controls
• Front passenger seat armrest
• Front passenger seat with 4-way directional controls
• 4-wheel disc brakes
• 4-wheel antilock (ABS) brakes
• Rear-wheel drive
• Seating capacity: 2
• Trailer wiring harness
• Front beverage holders
• Front height adjustable seatbelts
• Basic warranty: 36 month/36
• 000 miles
• AM/FM
• ENGINE 4.3L V6 with Direct Injection and Variable Valve Timing includes aluminum block construction (276 hp [206 kW] @ 5200 rpm 298 lb-ft of torque [404 Nm] @ 3900 rpm) (STD)
• GLASS FIXED REAR SIDE DOOR WINDOWS
• REAR AXLE 3.42 RATIO
• CRUISE CONTROL
• TRAILERING PROVISIONS TRAILERING WIRE HARNESS ONLY
• SUMMIT WHITE
• AUDIO SYSTEM AM/FM STEREO WITH MP3 PLAYER seek-and-scan digital clock TheftLock random select auxiliary jack and 2 front door speakers (STD)
• TIRE SPARE LT245/75R16E ALL-SEASON BLACKWALL located at rear underbody of vehicle (STD)
• TRAILERING EQUIPMENT HEAVY-DUTY includes trailering hitch platform and dual 4-pin/7-pin sealed connector Includes (UY7) trailer wiring.)
• KEY EQUIPMENT TWO ADDITIONAL KEYS FOR SINGLE KEY SYSTEM Provides two additional spare keys for a total of (4). (Keys will be cut but not programmed) NOTE: programming of keys is at customer's expense. Programming keys is not a warranty expense.
• LICENSE PLATE KIT FRONT
• 2500 VAN PREFERRED EQUIPMENT GROUP includes Standard Equipment
• GLASS REAR DOORS AND SIDE CARGO DOORS (Includes (A12) fixed rear doors window glass and (A13) fixed rear side door window glass.
• BODY STANDARD (STD)
• VISORS DRIVER AND FRONT PASSENGER vinyl in lieu of standard cloth
• DRIVER CONVENIENCE PACKAGE includes Tilt-Wheel and (K34) cruise control
• DOOR SWING-OUT PASSENGER-SIDE 60/40 SPLIT (STD)
• WINDOW SECURITY BAR REAR SIDE DOOR GLASS
• TRANSMISSION 8-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• MEDIUM PEWTER VINYL SEAT TRIM
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGH-BACK BUCKETS with head restraints and vinyl or cloth trim (STD)
• PAINT SOLID
• GLASS FIXED REAR DOORS WINDOWS
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• SEATS FRONT BUCKET WITH VINYL TRIM and outboard head restraints includes inboard armrests. (STD) Includes (DAA) driver and front passenger vinyl visors.)
• Power Door Locks
• Power Windows
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Conventional Spare Tire
• Tires - Front All-Season
• Tires - Rear All-Season
• Intermittent Wipers
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• WiFi Hotspot
• Vinyl Seats
• Bucket Seats
• Bucket Seats
• A/C
• Tire Pressure Monitor
• Trip Computer
• Power Door Locks
• Power Windows
• Immobilizer
• Power Outlet
• Power Outlet
• Back-Up Camera
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag On/Off Switch
• Telematics
• Requires Subscription
• Back-Up Camera
• Tire Pressure Monitor

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
• Cargo Area Dimensions
• Cargo Area Length : Floor to Console (in)
• Cargo Area Length : Floor to Seat 1 (in)
• Cargo Area Width : Beltline (in)
• Cargo Box (Area) Height (in): 52.9
• Cargo Box Width : Wheelhousings (in)
• Cooling System
• Total Cooling System Capacity (qts): 13.6
• Doors
• Side Door Type: Swing-out
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 105
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Ground Clearance, Front (in): 11
• Ground Clearance, Rear (in): 7.1
• Ground to Top of Load Floor (in): 27.8
• Height, Overall (in): 84.6
• Length, Overall w/rear bumper (in): 224.1
• Overhang, Front (in): 39.7
• Rear Door Opening Height (in): 49.4
• Rear Door Opening Width (in): 57
• Side Door Opening Height (in): 47.9
• Side Door Opening Width (in): 44.1
• Step Up Height - Front (in): 20.3
• Step Up Height - Side (in): 20.8
• Wheelbase (in): 135
• Width, Max w/o mirrors (in): 79.2
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Mid-frame
• Interior Dimensions
• Passenger Capacity: 2
• Steering
• Steering Ratio (:1), At Lock: 17.2
• Steering Ratio (:1), On Center: 17.2
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): N/A
• Summary
• Body Code: ZW9
• Body Style: Cargo Van

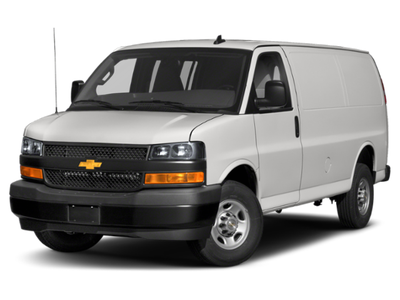

• Vehicle Name: Chevrolet Express Cargo Van
• Suspension
• Axle Capacity - Front (lbs): 4100
• Axle Capacity - Rear (lbs): 5360
• Axle Ratio (:1) - Rear: 3.42
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Shock Absorber Diameter - Front (mm): N/A
• Shock Absorber Diameter - Rear (mm): N/A
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 5360
• Stabilizer Bar Diameter - Front (in): 1.38
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Hypoid Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 2205
• Front Tire Order Code: XLP
• Front Tire Size: LT245/75R16E
• Rear Tire Capacity (lbs): 3042
• Rear Tire Order Code: YLP
• Rear Tire Size: LT245/75R16E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Order Code: ZLP
• Spare Tire Size: LT245/75R16E
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Maximum Trailering Capacity (lbs): 10000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 740
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7400
• Vehicle
• Rear Door Type: Dual Swing-out
• Weight Information
• Curb Weight - Front (lbs): 2877
• Curb Weight - Rear (lbs): 2348
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 5360
• Gross Combined Wt Rating (lbs): 13000
• Gross Vehicle Weight Rating Cap (lbs): 8600
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 16 x 6.5
