• Air conditioning, single-zone
• Assist handle, front passenger on A-pillar (Includes rear assist handles in the headliner on crew cab models.)
• Audio system feature, 4-speaker system

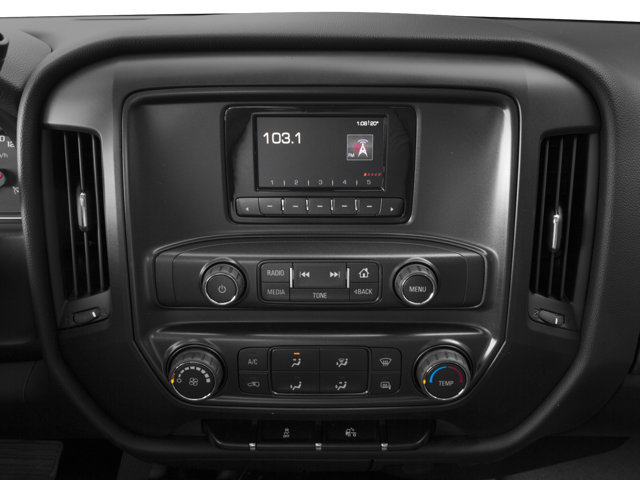

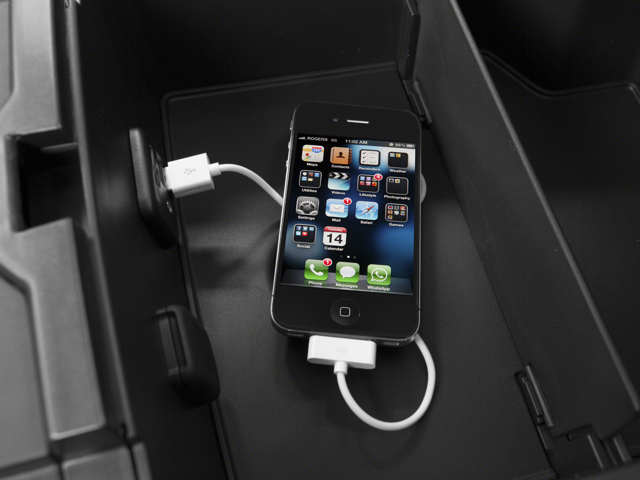

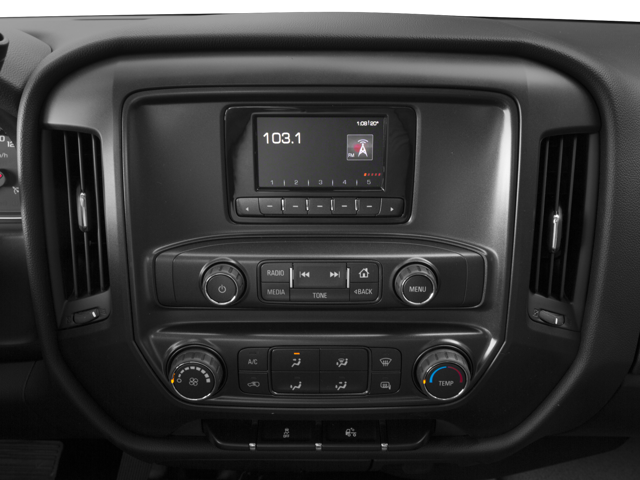

• Audio system, 4.2" Diagonal Color Display, AM/FM stereo with USB ports, auxiliary jack and SD card slot
• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl
• OnStar Delete

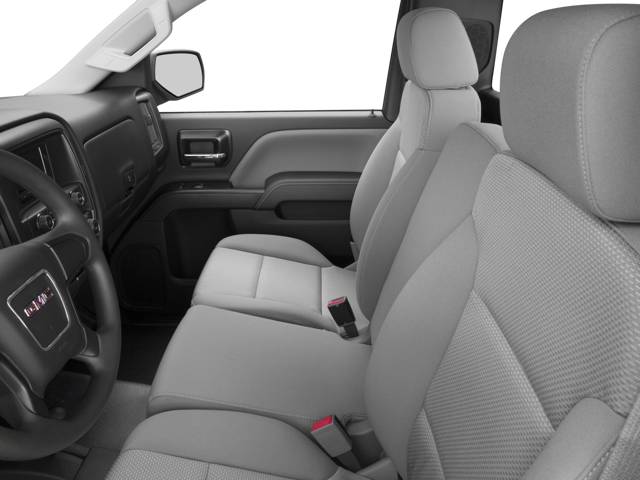

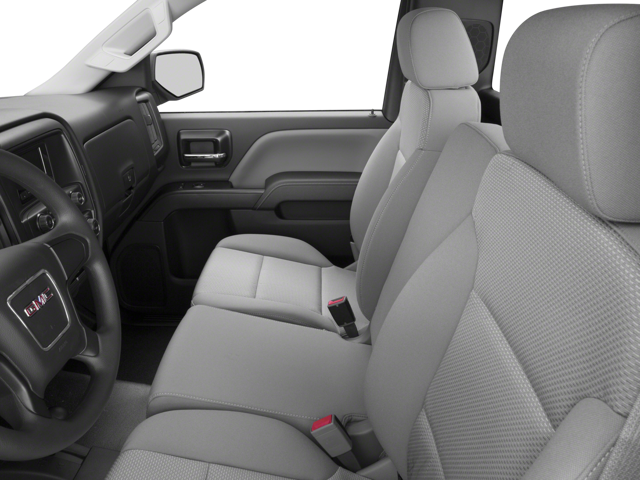

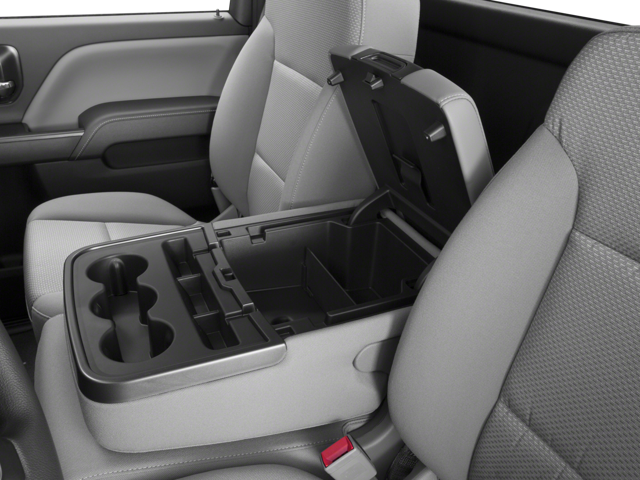

• Seats, front 40/20/40 split-bench 3-passenger, driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.
• SiriusXM Satellite Radio, delete

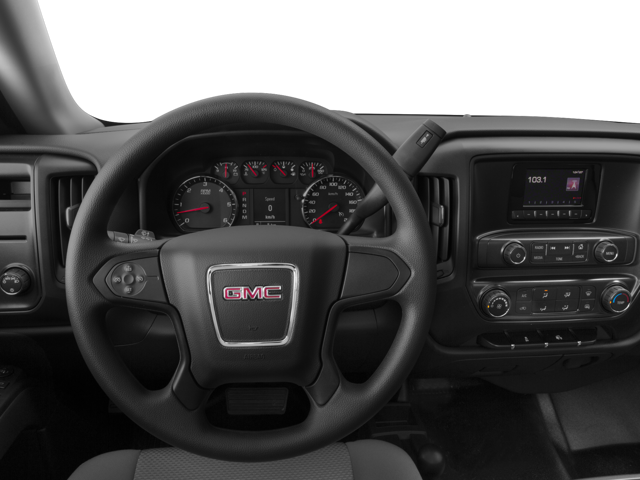

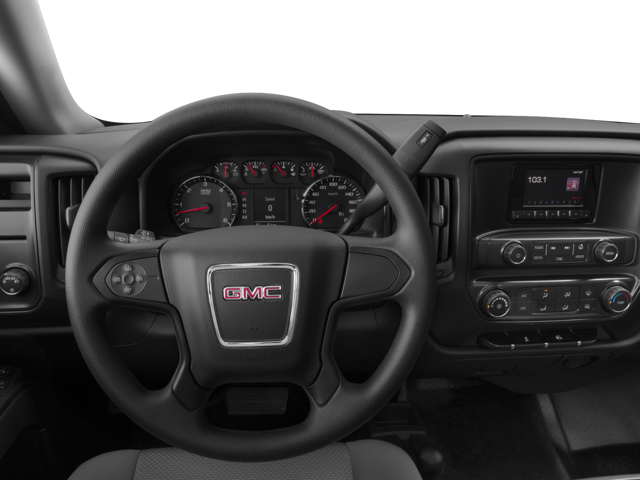

• Steering column, manual Tilt-Wheel

• Alternator, 150 amps
• Battery, heavy-duty 730 cold-cranking amps/70 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Body, Pick Up Box
• Brakes, 4-wheel disc with DURALIFE rotors, 4-wheel antilock
• Cargo tie downs (4), movable upper
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, fully-boxed, hydroformed front section
• GVWR, 6700 lbs. (3039 kg)
• Rear wheel drive
• Steering, Electric Power Steering (EPS) assist, rack-and-pinion
• Suspension Package, Handling/Trailering, heavy-duty includes 46 mm piston monotube shocks and 36mm front stabilizer bar

• Air bags, dual-stage frontal airbags for driver and front passenger, seat-mounted side-impact airbags for driver and front outboard passenger, and head-curtain airbags for front and rear outboard seating positions; includes right-front airbag Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps with automatic exterior lamp control
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Tire Pressure Monitoring System (does not apply to spare tire)

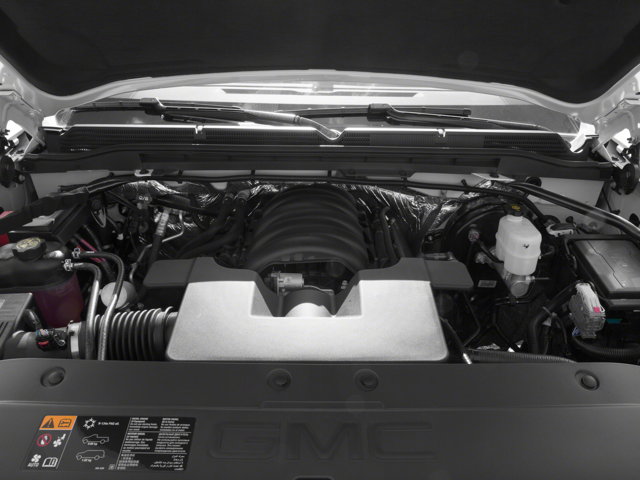

ENGINE, 5.3L ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT, DIRECT INJECTION

• and Variable Valve Timing
• includes aluminum block construction (355 hp [265 kW] @ 5600 rpm
• 383 lb-ft of torque [518 Nm] @ 4100 rpm; more than 300 lb-ft of torque from 2000 to 5600 rpm)

• Sierra Convenience Package: LED Cargo Box Lighting; Black Power Adjustable Heated Outside Mirrors; Remote Keyless Entry; Rear Vision Camera with Dynamic Guide Lines; 110-Volt AC Power Outlet; Power Windows with Driver Express Up and Down
• Preferred Equipment Group 1SA: Cloth Seat Trim; Single-Zone Air Conditioning; 17" X 8" Painted Steel Wheels; Solar Absorbing Tinted Glass; AM/FM Stereo with 4.2" Diagonal Color Display; Manual Tilt Wheel Steering Column; Black Manual Outside Mirrors; 40/20/40 Front Split Bench Seat; 3.5" Diagonal Monochromatic Display DIC; Graphite-Colored Rubberized-Vinyl Floor Covering; Chrome Grille Surround; 150 Amp Alternator
• Trailering Equipment
• Heavy-Duty Rear Locking Differential
• Rear Vision Camera with Dynamic Guide Lines
• Electric Rear Window Defogger
• 110-Volt AC Power Outlet
• LED Cargo Box Lighting
• Rear mounted camera
• Brake assist system
• Cruise control with steering wheel mounted controls
• EcoTec3 5.3L V-8 gasoline direct injection
• variable valve control
• regular unleaded
• engine with cylinder deactivation and 355HP
• EcoTec3 5.3L V-8
• Mechanical
• Immobilizer
• Trailer sway control
• External memory control
• StabiliTrak w/Proactive Roll Avoidance electronic stability control system with anti-roll
• Hill start assist
• Heated driver and passenger side door mirrors
• Manual tilting steering wheel
• Wheel hub covers
• 17 x 8-inch front and rear painted steel wheels
• P255/70SR17 AS BSW front and rear tires
• Cloth front seat upholstery
• 6 airbags
• Driver front impact airbag
• Seat mounted side impact driver airbag
• Curtain first-row overhead airbags
• Passenger front impact airbag
• Seat mounted side impact front passenger airbag
• Airbag occupancy sensor
• Auto-locking doors

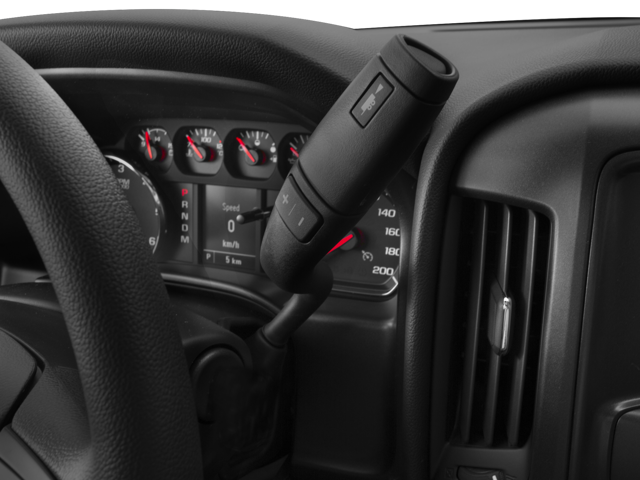

• 6-speed automatic
• Selectable mode transmission
• Manual climate control
• Transmission electronic control
• Sequential shift control
• Automatic
• Projector beam headlights
• Halogen headlights
• Auto on/off headlight control
• Daytime running lights
• Delay-off headlights
• 40-20-40 split-bench front seat
• Driver seat with 4-way directional controls
• Manual driver seat lumbar
• Split-bench front seat
• Front seat center armrest
• Front passenger seat with 4-way directional controls
• DuraLife 4-wheel disc brakes
• 4-wheel antilock (ABS) brakes
• Rear-wheel drive
• Heavy-duty ride suspension
• Seating capacity: 3
• Trailer wiring harness
• Class IV tow rating
• Trailer hitch
• DIFFERENTIAL HEAVY-DUTY LOCKING REAR
• REAR AXLE 3.42 RATIO
• TRANSMISSION 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• SUMMIT WHITE
• DEFOGGER REAR-WINDOW ELECTRIC
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE (includes driver's side spotter mirror) (Black
• GVWR 6800 LBS. (3084 KG)
• LICENSE PLATE KIT FRONT
• SIERRA CONVENIENCE PACKAGE includes (DL8) outside heated power-adjustable mirrors (AQQ) Remote Keyless Entry (UVC) Rear Vision Camera (KI4) 110-volt AC power outlet and (UF2) LED cargo box lighting (Includes (A31) power windows on regular cab. If (ZW9) pickup box delete is ordered (UF2) LED cargo box lighting and (UVC) Rear Vision Camera will not be included.)
• CUSTOMER DIALOGUE NETWORK
• POWER OUTLET 110-VOLT AC
• REMOTE KEYLESS ENTRY
• WHEEL FULL-SIZE SPARE 17" (43.2 CM) STEEL
• BODY PICK UP BOX (STD)
• JET BLACK/DARK ASH CLOTH SEAT TRIM
• WORK TRUCK PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• ENGINE 5.3L ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT DIRECT INJECTION and Variable Valve Timing includes aluminum block construction (355 hp [265 kW] @ 5600 rpm 383 lb-ft of torque [518 Nm] @ 4100 rpm; more than 300 lb-ft of torque from 2000 to 5600 rpm)
• LED LIGHTING CARGO BOX with switch on center switch bank
• TIRES P255/70R17 ALL-SEASON BLACKWALL (STD)
• TRAILERING EQUIPMENT includes trailer hitch 7-pin and 4-pin connectors (Includes (G80) locking rear differential.
• AUDIO SYSTEM 4.2" DIAGONAL COLOR DISPLAY AM/FM STEREO with USB ports auxiliary jack and SD card slot (STD)
• WHEELS 17" X 8" (43.2 CM X 20.3 CM) PAINTED STEEL (STD)
• REAR VISION CAMERA with dynamic guide lines
• COOLING AUXILIARY EXTERNAL TRANSMISSION OIL COOLER

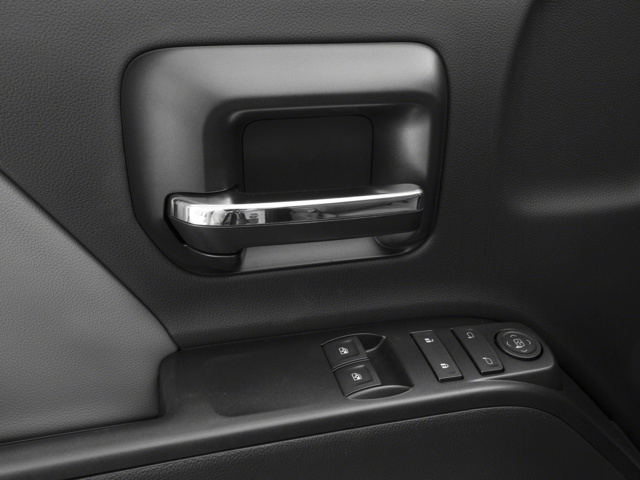

• WINDOWS POWER with driver express up and down and express down on all other windows
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Split Bench Seat
• Adjustable Steering Wheel
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Tire Pressure Monitor

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.00 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.60 x 0.79
• Cargo Area Dimensions
• Cargo Box (Area) Height (in): 21.23
• Cargo Box Length : Floor (in)
• Cargo Box Width : Floor (in)
• Cargo Box Width : Top, Rear (in)
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 76.40
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 150
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 55.40
• Front Bumper to Back of Cab (in): 116.90
• Ground Clearance, Front (in): 8.33
• Ground Clearance, Rear (in): 8.33
• Ground to Top of Load Floor (in): 35.9
• Height, Overall (in): 73.50
• Length, Overall w/o rear bumper (in): 224.43
• Wheelbase (in): 133.00
• Width, Max w/o mirrors (in): 80.00
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Interior Dimensions
• Front Head Room (in): 42.40
• Front Hip Room (in): 60.73
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 66.03
• Passenger Capacity: 3
• Mileage
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 23
• Fuel Economy Est-Combined (MPG): 19
• Steering
• Steering Type: Electric Rack & Pinion
• Turning Diameter - Curb to Curb (ft): 43.9
• Summary
• Body Code: E63

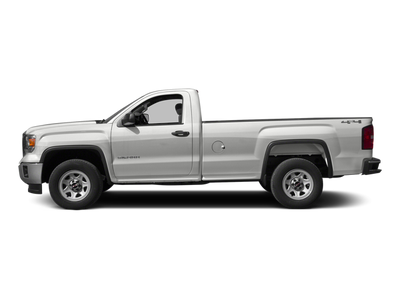

• Body Style: Reg Cab Pickup
• Vehicle Name: GMC Sierra 1500
• Suspension
• Axle Capacity - Front (lbs): 3300
• Axle Capacity - Rear (lbs): 3950
• Axle Ratio (:1) - Rear: 3.42
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-floating
• Shock Absorber Diameter - Front (mm): 46.00
• Shock Absorber Diameter - Rear (mm): 35.00
• Spring Capacity - Front (lbs): 3300
• Spring Capacity - Rear (lbs): 3950
• Stabilizer Bar Diameter - Front (in): 1.35
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Tires
• Front Tire Order Code: RBZ
• Front Tire Size: P255/70R17
• Rear Tire Order Code: RBZ
• Rear Tire Size: P255/70R17
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Order Code: ZBZ
• Spare Tire Size: P255/70R17
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Maximum Trailering Capacity (lbs): 9800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 980
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9800
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3300
• Gross Axle Wt Rating - Rear (lbs): 3950
• Gross Combined Wt Rating (lbs): 15000
• Gross Vehicle Weight Rating Cap (lbs): 6800
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 17 x 8.0
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 17 x 8.0
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 17 x
