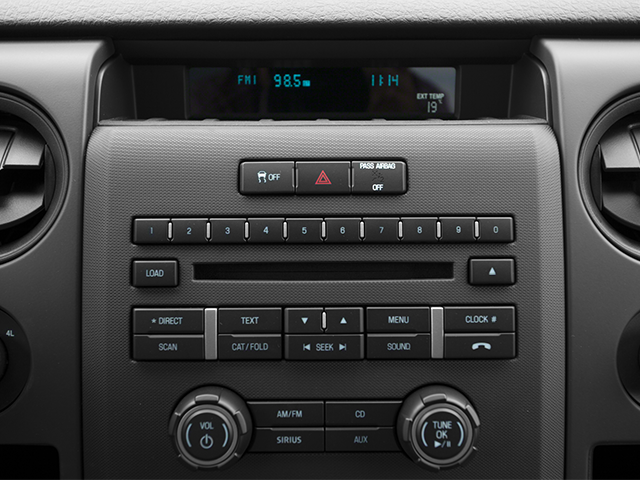

• AM/FM stereo w/clock
• Black ring w/black vanes air conditioning registers

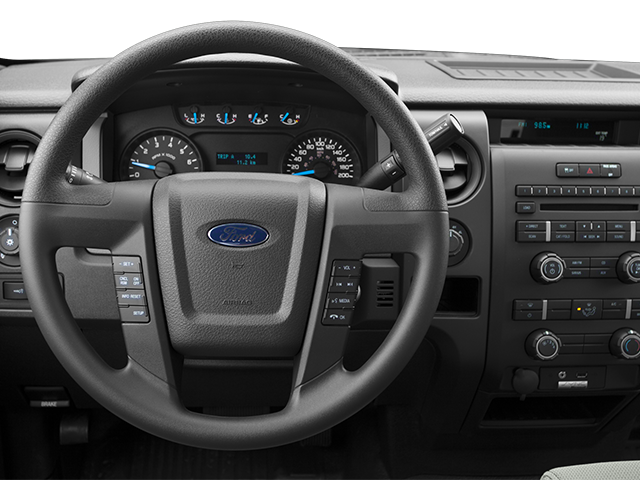

• Black urethane steering wheel
• Black vinyl floor covering
• Deployable cupholder under center portion of seat
• Display center -inc: warning messages & text functions
• Dome light
• Driver & passenger door scuff plates
• Front passenger side A-pillar grab handle

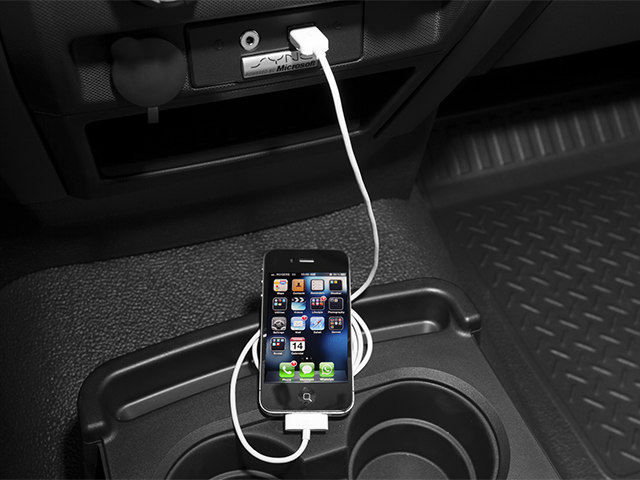

• Front pwr point
• Manual Air Conditioning
• SecuriLock passive anti-theft system (PATS)
• Sunvisors w/driver side strap, passenger mirror
• Tilt steering column

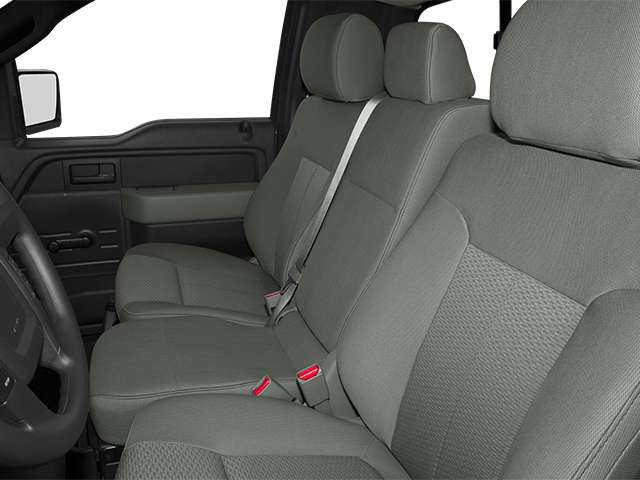

• Vinyl 40/20/40 split bench front seat

• (4) pickup box tie-down hooks
• 2-ton jack
• 78-amp/hr (750CCA) maintenance-free battery
• Easy Fuel capless fuel filler system
• Gas shock absorbers
• Leaf spring rear suspension w/2-stage variable rear springs
• Long-spindle double wishbone front suspension w/coil-over-shock IFS
• Pwr front/rear disc brakes
• Pwr rack & pinion steering
• Rear wheel drive
• Trailer sway control

• AdvanceTrac w/Roll Stability Control (RSC)
• Anti-lock braking system (ABS)
• Auto lock safety belt feature for child seats
• Dual note horn
• Dual stage driver & passenger front airbags
• Dual stage driver & passenger seat-mounted side airbags
• Hill start assist
• Outboard front lap & shoulder safety belts -inc: height adjusters, pretensioners, energy management retractors
• Safety Canopy front side curtain airbags
• SOS post crash alert system
• Tire pressure monitoring system

3.7L V6 FFV ENGINE

• (STD)

• Equipment Group 100A Base: 3.55 Axle Ratio; 17" Gray Styled Steel Wheels; Electronic 6-Speed Automatic Transmission; 6
• 750 lbs Payload Package GVWR; 3.7L V6 Flex Fuel Engine; AM/FM Stereo/clock Radio; P235/75R17 BSW A/T (5) Tires
• Trailer Tow Package

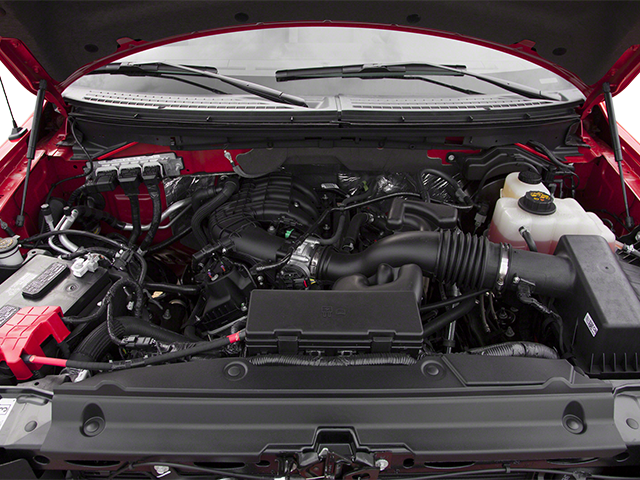

• 3.7L V-6 DOHC
• variable valve control
• regular unleaded
• engine with 302HP
• 3.7L V-6 DOHC
• Mechanical
• SecuriLock immobilizer
• Trailer sway control
• AdvanceTrac w/Roll Stability Control electronic stability control system with anti-roll
• Hill start assist
• Easy lift tailgate
• Easy lower tailgate
• Manual tilting steering wheel
• Easy Fuel capless fuel filler
• Metallic paint
• Wheel hub covers
• 17 x 7.5-inch front and rear gray styled steel wheels
• P235/75SR17 AT BSW front and rear tires
• Cloth front seat upholstery
• 6 airbags
• Driver front impact airbag
• Seat mounted side impact driver airbag
• Safety Canopy System curtain first-row overhead airbags
• Passenger front impact airbag
• Seat mounted side impact front passenger airbag
• Airbag occupancy sensor
• 6-speed automatic
• Selectable mode transmission
• Manual climate control
• Transmission electronic control

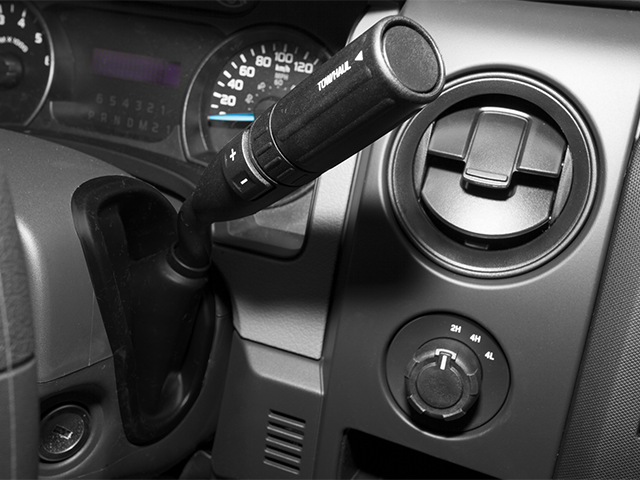

• SelectShift Sequential shift control
• Automatic
• Reflector headlights
• Halogen headlights
• 40-20-40 split-bench front seat
• Driver seat with 4-way directional controls
• Manual driver seat lumbar
• Split-bench front seat
• Front seat center armrest
• Front passenger seat with 4-way directional controls
• 4-wheel disc brakes
• 4-wheel antilock (ABS) brakes
• Rear-wheel drive
• Seating capacity: 3
• Trailer wiring harness
• Class IV tow rating
• Trailer hitch
• Pickup bed-rail protectors
• Front beverage holders
• Front height adjustable seatbelts
• Front seatbelt pretensioners
• Basic warranty: 36 month/36
• 000 miles
• AM/FM
• BASE EQUIPMENT GROUP -inc: std equipment
• TRAILER TOW PKG -inc: class IV trailer hitch receiver 7-pin wiring harness upgraded radiator aux trans oil cooler SelectShift auto trans
• Rear Wheel Drive
• Power Steering
• 4-Wheel Disc Brakes
• Tires - Front All-Terrain
• Tires - Rear All-Terrain
• Steel Wheels
• Conventional Spare Tire
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• AM/FM Stereo
• Vinyl Seats
• Split Bench Seat
• Adjustable Steering Wheel
• Immobilizer
• A/C
• Power Outlet
• Passenger Vanity Mirror
• ABS
• Traction Control
• Stability Control
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Tire Pressure Monitor

• Mileage
• Fuel Economy Est-Combined (MPG): 19
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 23
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 155
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 15.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3150
• Gross Axle Wt Rating - Rear (lbs): 3500
• Curb Weight - Front (lbs): 2675
• Curb Weight - Rear (lbs): 2010
• Gross Vehicle Weight Rating Cap (lbs): 6450
• Gross Combined Wt Rating (lbs): - TBD -
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 825
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 5500
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1375
• Suspension
• Suspension Type - Front: Double-Wishbone
• Suspension Type - Rear: Live Axle
• Spring Capacity - Front (lbs): 3150
• Spring Capacity - Rear (lbs): 3500
• Axle Type - Front: Long-Spindle
• Axle Type - Rear: Semi-Float Beam
• Axle Capacity - Front (lbs): 3750
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): 36.068
• Shock Absorber Diameter - Rear (mm): 32.004
• Stabilizer Bar Diameter - Front (in): 1.34
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.78 x 0.55
• Rear Brake Rotor Diam x Thickness (in): 13.7 x 0.413
• Tires
• Front Tire Order Code: T7B
• Rear Tire Order Code: T7B
• Front Tire Size: P235/75R17
• Rear Tire Size: P235/75R17
• Spare Tire Size: P235/75R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 20.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 41.7
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Fully Boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26.0
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 125.9
• Length, Overall w/o rear bumper (in): 213.2
• Width, Max w/o mirrors (in): 79.2
• Height, Overall (in): 74.8
• Overhang, Front (in): 38.3
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 135.6
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.1
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.8
• Cargo Box Width @ Top, Rear (in): 60.3
• Cargo Box Width @ Floor (in): 60.3
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): 60.3
• Cargo Volume (ft³): 65.5
• Ext'd Cab Cargo Volume (ft³): 17.4
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.4
• Front Shoulder Room (in): 66.6
• Front Hip Room (in): 60.5
• Summary
• Vehicle Name: Ford F-150
• Body Style: Regular Cab Pickup
• Emissions
• EPA Greenhouse Gas Score: 3 (2012)
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.7
